Cummins Qsm11 Marine Engine Service Manual Pdf
- FREE CUMMINS ISM11 QSM11 ISM QSM SERIES ENGINE WORKSHOP MANUAL Cummins engine has a great fuel system which optimizes combustion for increased engine performance and fuel efficient operation. With a low profile and heat exchanging cooling system, this system ensures that you do not require any professional to take its good care.
- Download Cummins Qsm11 Service Manual Fire Power.
Cummins QSM11-G1 Diesel Engine for Generator Set

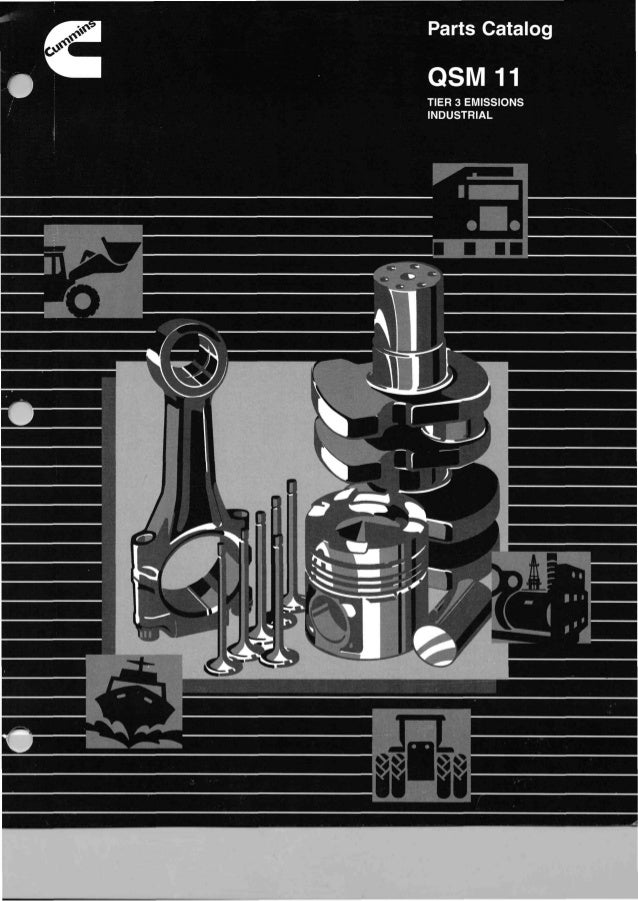

Cummins ISM11 and QSM11 Essential Diesel Engine Bolt Tightening Torques. Cummins ISM11 and QSM11 Main Bearing Bolts. Step 2 = 142 Nm. Step 3 = 210 Nm. Step 4 - loosen all. Step 5 Step - repeat steps 1-3. Cummins ISM11 and QSM11 Connecting Rod Bolts. Cummins qsm 11 parts catalog. Iveco Arvind Negi. Cummins shop manual c series engines Arvind Negi. Cummins qxs 15 gd parts catalog Arvind Negi.
Cummins Qsm11 Marine Engine Service Manual
| General Information of CumminsQSM11-G1Diesel Engine for Generator Set | |
| Engine Model | CumminsQSM11-G1 |
| Engine Type | 6 Cylinder, In-line, 4 Stroke |
| Displacement | 10.8 L |
| Bore*Stroke(mm) | 125*147 |
| Dry Weight(with flywheel and alternator) | 973 KG |
| Wet Weight(with flywheel and alternator) | 1007 KG |
| Technical Specification of CumminsQSM11-G1Diesel Engine for Generator Set | |
| Aspiration | Turbocharged, Air-Air Intercooled |
| Fuel System | PT Pump Direct Injection |
| Emission Standard | EU Stage II |
| Engine Cooling Fluid Volume | 34 L |
| Coolant capacity-engine only | 9.5 L |
| Idle speed | 675-750 RPM |
| Maximum Friction Power | 22.4 KW |
| Compression Ratio | 16.3:1 |
| Firing Order | 1-5-3-6-2-4 |
| Performance Data of CumminsQSM11-G1Diesel Engine for Generator Set | |
| Rated Output/Speed | 234KW/1500RPM |
| Standby Output/Speed | 257KW/1500RPM |
| Rated Output/Speed | 359W/1800RPM |
| Standby Output/Speed | 395KW/1800RPM |
| Fuel Consumption/Rated Output | 56 L/h |
| Fuel Consumption/Standby output | 61 L/h |
| As optional of Cummins QSM11-G1Diesel Engine for Generator Set | |
| Control Panel | As optional |
Cummins Qsm11 Service Manual Pdf
Curves shown above represent gross engine performance capabilities obtained and corrected in accordance with GB/T18297.
